CZone Displays

Browse the full range of modern and sleek touchscreen screens.

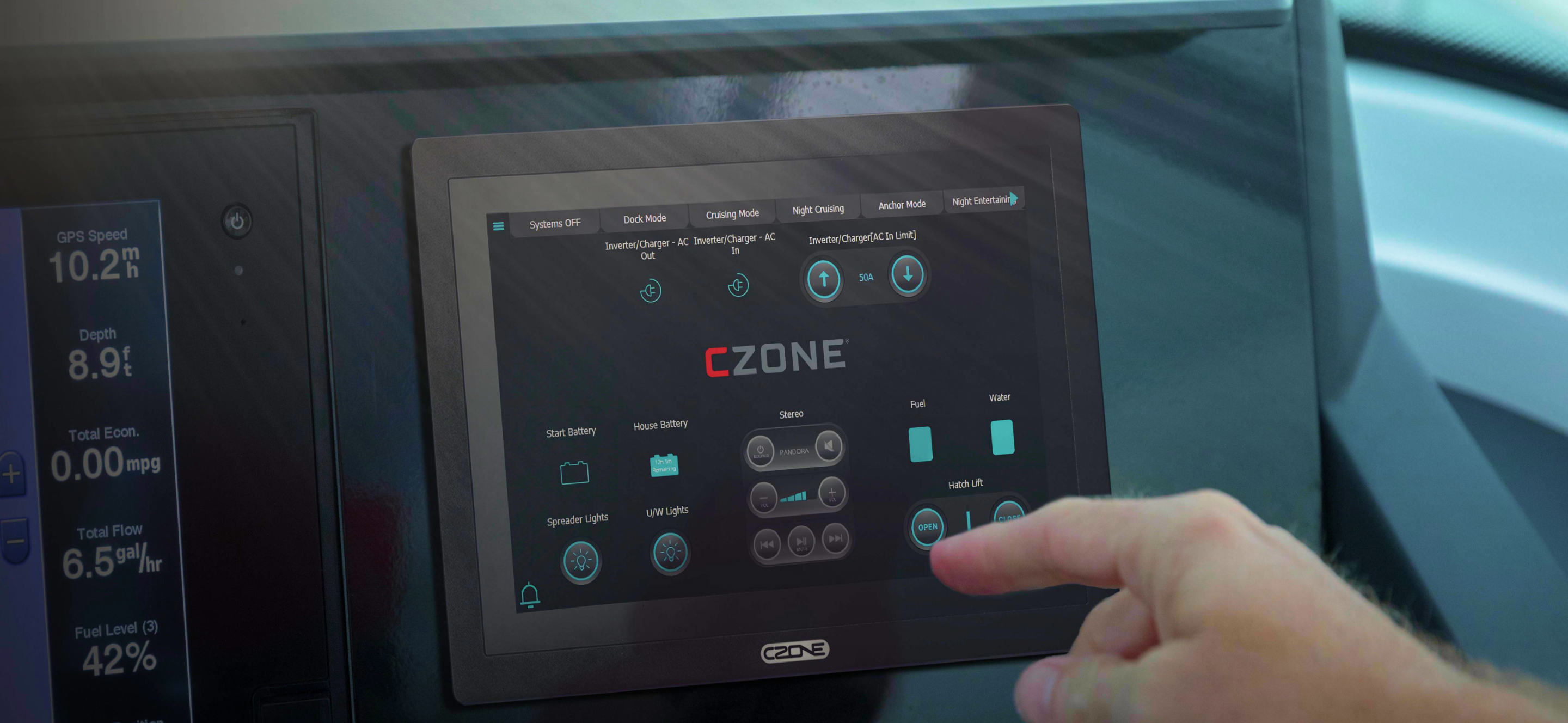

CZone displays are the interface between the CZone network and the user. Offering full control of circuits as well as the ability to view important onboard system information, such as tank levels and power levels (for both AC and DC supplies).

Designed with the user in mind, the easy-to-use display screens put the control of all components directly at your fingertips. Multiple display interfaces can be used in the same system.

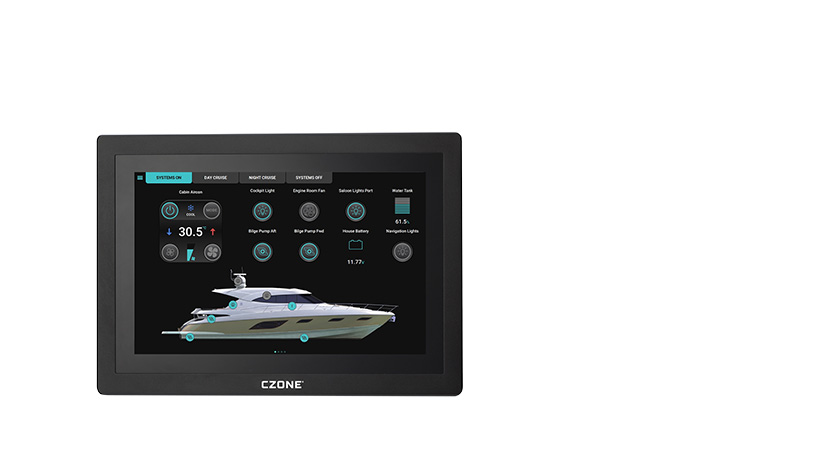

Touch 10 Generation 2

Part number: 80-911-0216-00

MARINE

RV & SPECIALITY VEHICLE

Our largest display, the CZone Touch 10 features a powerful dual-core processor, high-bright touchscreen and easy-to-use interface.

Wide viewing angles, even in direct sunlight
24-bit color for better accuracy and contrast
High res 1024x600 display
500-nit dimming option for night-time viewing
NMEA 2000 compatible
Wide 8-32V DC voltage range
Familiar CZone 2.0 interface, customizable for any OEM

Dimensions

Package Height (in) *	3
Package Width (in) *	9
Package Length / Depth (in) *	13.6
Package Weight (oz)*	80

View Catalog Resources

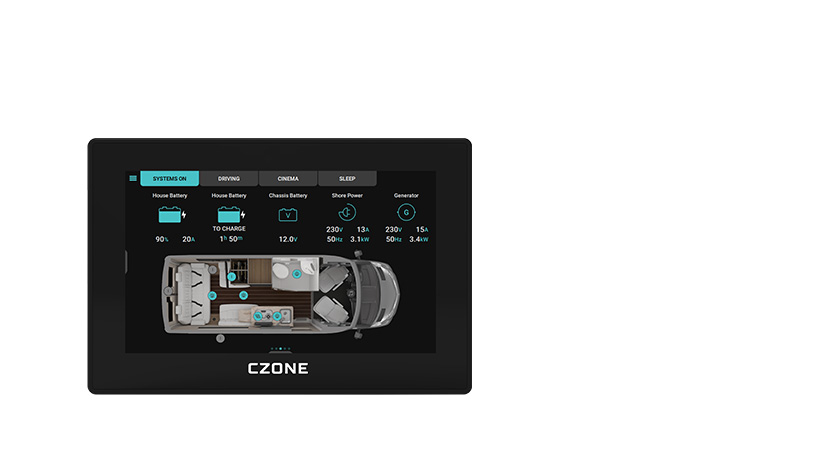

Touch 7

Part number: 80-911-0200-00

RV & SPECIALITY VEHICLE

The CZone Touch 7 combines our fastest dual-core processor with built-in Wi-Fi and Ethernet for easy tablet pairing. The kit is ideal for use in RV settings.

Wide viewing angles
24-bit color for better accuracy and contrast
High res 1024x600 display
500-nit dimming option for night-time viewing
NMEA 2000, Wi-Fi & Ethernet compatible
Wide 8-32V DC voltage range
Familiar CZone 2.0 interface, customizable for any OEM

Dimensions

Package Height (in) *	3.1
Package Width (in) *	7
Package Length / Depth (in) *	9.1
Package Weight (oz)*	33.57

View Catalog Resources

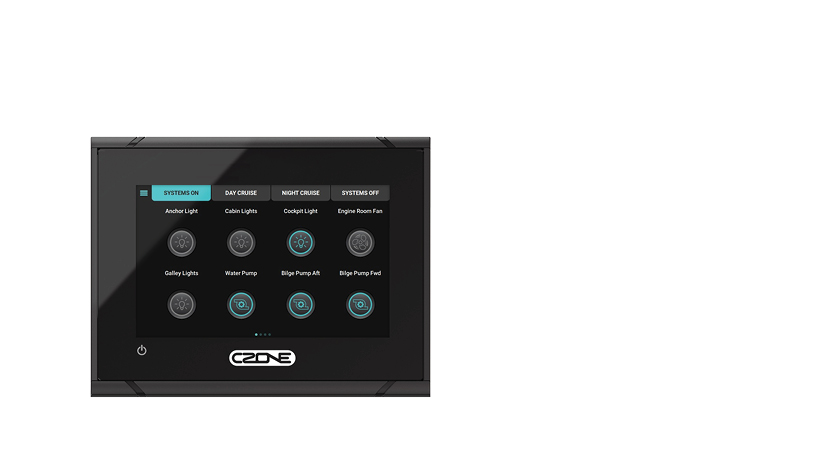

Touch 5

Part number: 80-911-0124-00

MARINE

RV & SPECIALITY VEHICLE

The CZone Touch 5 provides a compact touchscreen option, ideal for smaller vessels or for use as a secondary display.

Super bright widescreen
NMEA 2000 compatible
Built-in WI-fi connectivity
MicroSD card slot
IPX7 water ingress protection
Glass dash styling
Low profile flush mounting

Dimensions

Package Height (in) *	9.1
Package Width (in) *	8.2
Package Length / Depth (in) *	11
Package Weight (oz)*	44

View Catalog Resources

Frequently asked questions

How do I check the software version on my CZone Display?

Go to Settings>About page to check software version. To update, download latest version from CZone Portal and update via appropriate media stick.

How do I change the dipswitch on my CZone Display?

CZone Displays have a software dipswitch unlike the physical dipswitch on most CZone Modules. The dipswitch can be changed by going to the Settings>Advanced page. Always ensure the dipswitch matches what is assigned to it in the systems CZone Configuration File.

My CZone Display is too bright, how do I dim the backlight?

To access Backlight controls swipe up from bottom of any page. You can dim the backlight to a specific level using the slider or press the power button to put in stand by. Additionally, you can configure the display to automatically go in to standby from the Settings>System page.
