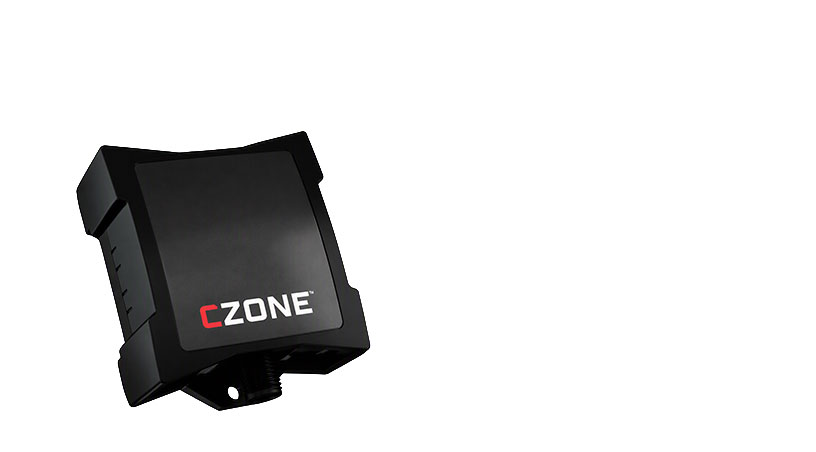

Connect BT is a compact Bluetooth interface that provides wireless monitoring of compatible Mastervolt systems through the CZone® 360 mobile app. View real-time system data, battery status, charging performance, and key device information directly from your smartphone or tablet—without opening panels or connecting a laptop.

• Provides wireless access to real-time system data via Bluetooth Low Energy (BLE).
• Monitors compatible Mastervolt batteries, chargers, inverters, and connected devices.
• Installs quickly with plug-and-play integration through MasterBus data ports.
• Delivers secure, encrypted communication for reliable onboard monitoring.
• Features a rugged marine-grade design tested to withstand harsh marine environments.

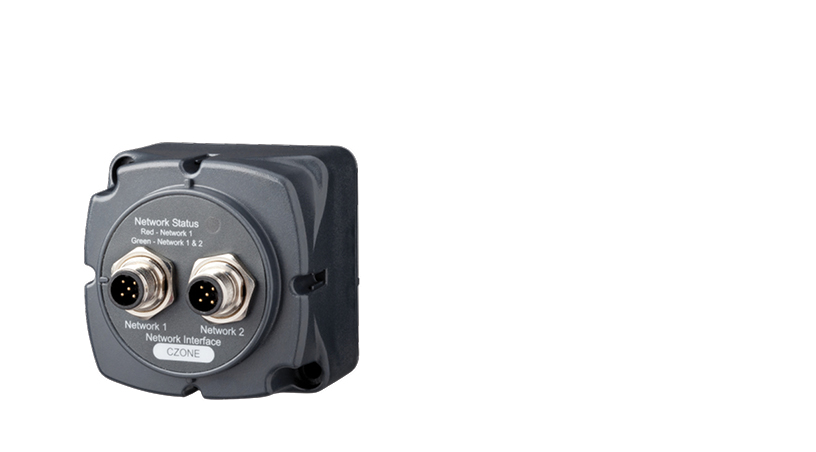

The CZone Network Bridge Interface allows expansion of the NMEA 2000 network when the maximum node limit for the network has been reached.

• For isolating sections of an NMEA 2000 network to decrease standby current draw
• Isolation when bridging between two CAN networks, (eg connecting CZone to Simrad Simnet)
• Allows addition of a further 40 nodes

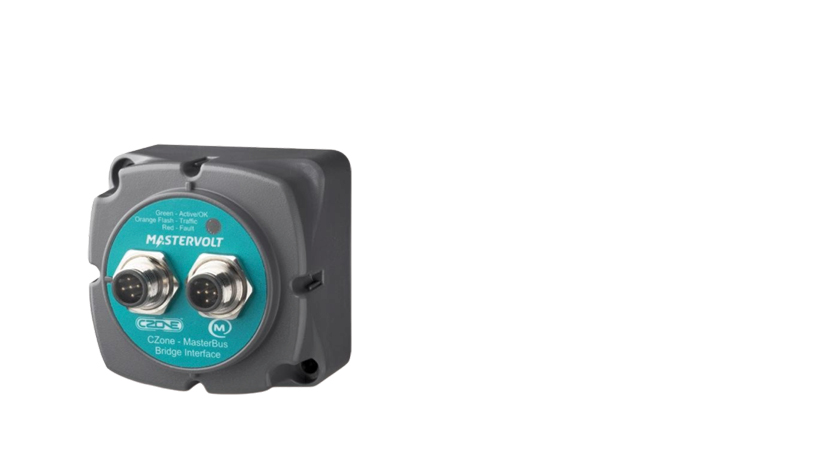

The MasterBus Bridge Interface physically connects the MasterBus and CZone networks, enabling the two networks to communicate and act as one.

• Control Mastervolt inverters and chargers from CZone displays and switches
• Control of MasterBus output devices (turn lights, pumps,etc. on/off)
• Control of CZone output devices (turn lights, pumps, etc. on/off) via MasterBus displays and switches
• Display CZone acquired systems information such as tank and power levels on Masterbus displays
• Display MasterBus acquired systems information such as tank and power levels on CZone displays
• Transfers alarms between both systems

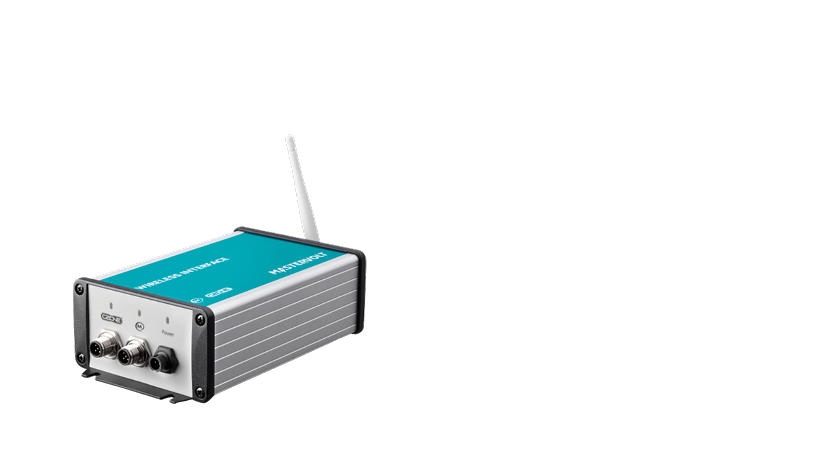

The WI is a digital switching interface module designed to connect your tablet to the CZone or Mastervolt digital switching system.

• User-friendly homepage to monitor and control onboard circuits
• Integrated control and monitoring of power products including battery chargers and inverters
• Receive visible alarms
• Connect a maximum of three devices simultaneously
• Ability to personalize homepage to display favorite circuits, modes & monitoring
• Ethernet connection to connect to other LANs
• USB connection for configuration updates
